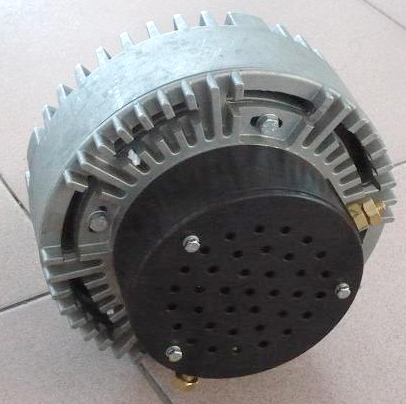

The "MANTA"® #PMG226 PMG

"A Real Power House!"

10 HP MOTOR and or

8000 WATT DC GENERATOR

Fits on most common Etek bolt patterns and mounts

New Lithium/Graphite brushes can last for decades and are very

electrically efficient converting most of your batteries power into

usable horsepower unlike motors requiring solidstate controllers.

Vertical Stator Design (Magnets on BOTH sides of the stator)

Worlds most powerful motor for its weight to hp ratio!

Over one hp per lb. / 28 horse power maximum - See details below

  • you must cool the manta with added fans
  • every thing that gets hot eventually burns out


Specifications:


  • 7.91" diameter / 5.64" length
  • 7/8" shaft with 3/16" keyway by 1.75" long (threaded center)
  • Torque constant: 1.14 in-lb/Amp (0.13 Nm/Amp)
  • 12V to 48V (has been run up to 96V / 45 sec. max. / 25 hp)
  • 72 RPM per volt (3456rpm @ 48V / continuous duty)
  • Can be used as a generator, makes power when turned (Requires 100 amp blocking diode)
  • Great for VERY low voltages at high amp loads (Perfect PMG for making hydrogen)
  • Perfect for building simple, cheap and dependable low voltage wind turbines.
  • A put-up and forget design! Expect decades of dependable service life.
  • Rain, ice and weather proof electronics.
  • Lithium/Graphite brushes last up to 275,000 hours (When used as electric generator in wind power systems)
  • 10 horsepower continuous duty at 48 volts.
  • Max motor currents: 330A for 2 minutes / 480A for 45 seconds.KEEPING THE MANTA COOL
  • 10 horsepower max at 48 volts continuous duty! Motor temp not to ever exceed 125F.
  • 14 horsepower max at 60 volts continuous duty with optional air cooling port. KEEPING THE MANTA COOL
  • 19 horsepower max at 72 volts for 2 minutes only! KEEPING THE MANTA COOL
  • 28 horsepower max at 96 volts for 45 seconds only! KEEPING THE MANTA COOL
  • Works for both CW or CCW rotations.
  • Epoxy/Lam rotor efficiency = 94%(Brushed motors convert more electricity into usable horsepower)
  • Weighs 22 lbs. / Dimensions - 8"X 9"X 9"



The next revolution in direct drive wind turbine technology!
LOTS OF LOW END POWER GENERATION ABILITY!

Fits on most common Etek bolt patterns and mounts

Permanent Magnet Motor /Generator
NO EXPENSIVE CONTROLLER REQUIRED

Let your battery voltage
be your speed controller.

  • Low speed 6 volts
  • Medium speed 12 volts.
  • High speed 24 volts
  • Hyper speed 48 volts


             Just Plug & Play -
       No expensive motor controller needed -

       Brush technology is older but they are very
       quick and simple to replace in the field AND
       brushed motors convert more electricity into
       usable horsepower! - 94% Electric Efficiency!

       OR - GET A CONTROLLER -

       http://www.sevcon.com/pages/millipak4Q.html
       OR
       http://www.4qd.co.uk/prod/4qd.html
       OR
       Make a simple controller just for BOATS

       NEW SIGMA CONTROLLER - Download
